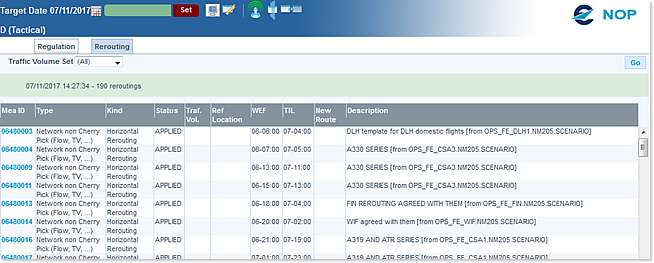

The Rerouting List tab lists the rerouting measures applied on one or all FMPs (traffic volume sets) for the selected Target Date.

Query

• Traffic Volume Set: a drop-down list of all system known FMPs. By default, this field is set to ALL.

Result

The Rerouting List displays the following details:

• Mea ID: Identification of the rerouting measure reference, and  link to the definition tab of the Measure Editor for the selected measure.
• Type: Abbreviated code of the measure type.
  Possible values are:
  a) FMPC: FMP Cherry Picked measure
  b) FMPM: FMP measure
  c) NTWC: Network Cherry Picked measure
  d) NTWM: Network measure
• Kind: Abbreviated code of the measure kind.
  The possible rerouting measure kind initials are:
  a) RI for Rerouting Indication and Opportunities
  b) RP for Rerouting Indication and Opportunities with RRP
  c) RN for Rerouting Mandatory after Proposal (RRN)
  d) RE for Rerouting Execute without Proposals on Demand of Regulated Demand
  ... followed by an hyphen separator character '-' immediately followed by the abbreviated code for the measure sub-type.
  The possible delay measure sub-types are:
  a) GLCAP: Ground Flight Level Capping
  b) GHRER: Ground Horizontal Rerouting
  c) TRAIL: Miles In Trail
  d) TPCHG: Terminal Procedure Change
• Status: The activity state of the rerouting measure
  Possible values are:
  a) Activating
  b) Applied
  c) Cancelling
  d) Cancelled
• M-CDM: Current collaboration state of the rerouting regulation measure, if any.
  Link to access directly the measure M-CDM details displayed in the M-CDM tool for that regulation of delay kind.
• Next By: Next deadline time (hh:mm) based on current M-CDM state:
  a) The time to coordinate by, if M-CDM state is Proposed or Draft
  b) Otherwise, the time to start implementation by, if M-CDM state is Coordinated
  c) Otherwise, the time to implement by, if M-CDM state is For implementation
  d) Otherwise blank (i.e. no time displayed)
• Traf. Vol.: Traffic volume affected by the rerouting measure.
• Ref Location: The reference location of the traffic volume.
• WEF: The start time of the rerouting measure, if any.
• UNT: The end time of the rerouting measure, if any.
• New Route: The new route identification.
• Description: The new route description.


By default, the Rerouting List is sorted by WEF in increasing time order (taking into account the date and the time), and then for the same WEF, in ascending alphanumerical order of Rrt. Ref. You can modify the sort status and direction of any of the column by simply clicking of its title (with exception to the last Description column).
