The Regulation Details tab only contains the Query part.

When applicable, the results of the query are displayed in a new instance of the Measure Editor.

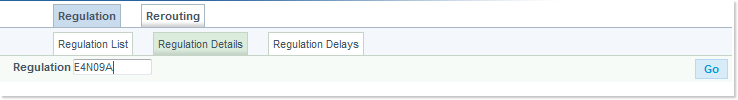

Query

• Regulation: Identification of the regulation.



Result

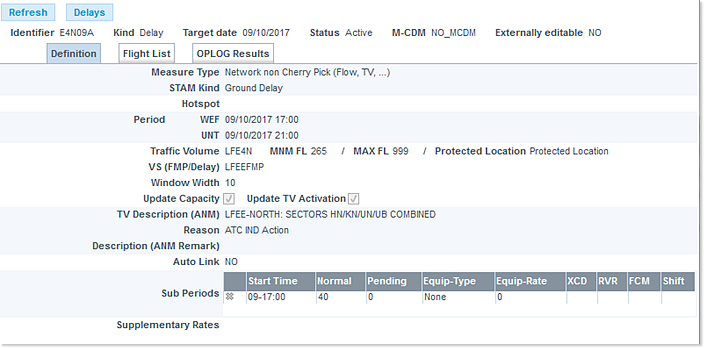

Clicking on the Go button from the Query opens a new Measure Editor Detached View, displaying all available details within the four tabs:

• Definition
• Flight List
• OPLOG Results

The Regulation Details displays the following information:

• Regulation ID: Identification of the regulation.
• Traffic Volume: Traffic volume affected by the regulation.
• Status: Status of the regulation measure.
  Possible values are:
  a) Not Active.
  b) Activating.
  c) Active.
  d) Modifying.
  e) Terminated.
  f) Cancelling.
  g) Cancelled.
• Period: Start and end date and time of the regulation.
• Exempted: Indication (Yes/No) if flights affected by this regulation are exempted from other regulations.
• Reason: Regulation reason.
  Possible values are:
  a) ATC CAPACITY
  b) ATC IND ACTION
  c) ATC ROUTEINGS
  d) ATC STAFFING
  e) ATC EQUIPMENT
  f) ACCIDENT/INCIDENT
  g) AERODROME CAPACITY
  h) AERODROME SERVICES
  i) IND ACTION NON-ATC
  j) AIRSPACE MANAGEMENT
  k) SPECIAL EVENT
  l) ENVIRONMENT ISSUES
  m) WEATHER
  n) OTHER
• Description: Full text description, if any, of the regulation.
• Window Width: The window width related to the regulation.
• AutoLink: Indication (Yes/No) if the local delay given by this regulation will be taken into account to compute the delay in other regulations.

For each Supplementary Period of the regulation, the sub periods list displays the following details:

• Start: The start date and time (dd-hh:mm format) within the Regulation activity period. This sub-period ends when the next one starts or
  at the end of the Regulation activity period if no other sub-period follows.
• End: The end date and time (dd-hh:mm format).
• Rate: The associated rate for the supplementary sub-period.


The Details also provide a direct link to access the Regulation Delays tab for the selected regulation.
