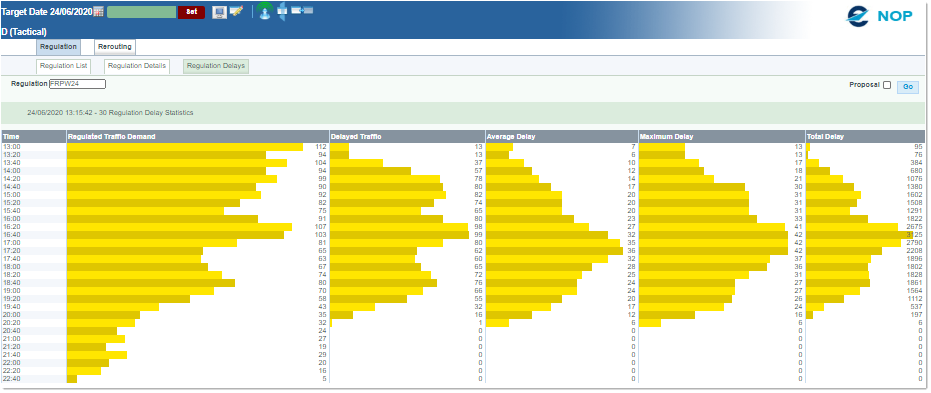

The Regulation Delays tab presents in tabular and graphical forms the regulated traffic demands and delay statistics of the selected regulation measure for the associated regulation period.

Query

• Regulation: Identification of the regulation.
  If the Regulation Details page is accessed from the Portlet, by default, this field is empty.
  If the Regulation Details page is accessed is accessed from either the Regulations List tab or the Regulation Details tab, by default, this field is set to the regulation identification for which this tab was invoked.
• Proposal: Allows you to request inclusion of the proposed flight plans in the retrieved delay figures (if not checked, the delay figures are based on the normal flight plans only).

Result

The Regulation Delays displays the following details for every 20 minute intervals of the regulation duration:

• Time: Delay statistics for the duration of the regulation period at 20 minute intervals.
• Regulated Traffic Demand: CASA Delayed Regulated Traffic Demand in number of Flights for the time interval.
• Delayed Traffic: Delayed Traffic Load in number of Flights for the time interval.
• Average Delay: The average delay in minutes for the time interval.
• Maximum Delay: The maximum delay in minutes for the time interval.
• Total Delay: The total delay in minutes for the time interval.
