NOP Portal - Help
Point

Query

  • Point: Significant point identifier. By default, this field is empty.
  • FL: Min Minimum flight level. This field supports a drop-down list containing:
    a) Values from 000 to 290 in steps of 5, followed by
    b) Values from 290 to 650 in steps of 10, followed by
    c) unl, for unlimited.
    By default, this field is set to 000.
  • Max: Maximum flight level. This field supports a drop-down list containing:
    a) Values from 000 to 300 in steps of 5, followed by
    b) Values from 310 to 650 in steps of 10, followed by
    c) unl, for unlimited.
    By default, this field is set to unl.
  • All other query parameters are similar to those in application in the Aerodrome tab  - with the exception of the Show VFR/OAT at Aerodrome check box.

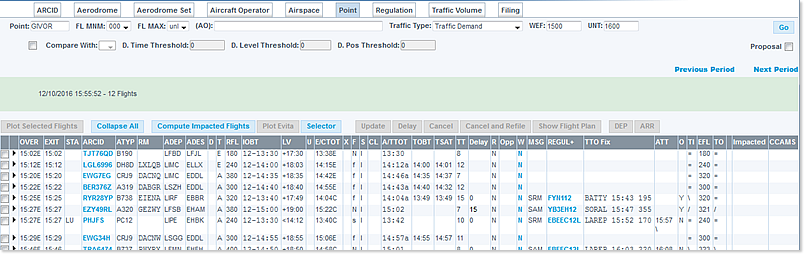

Results

The flights matching the submitted query are listed in a table, featuring the following columns:

OVER, EXIT, STA, ARCID, ATYP, ADEP, ADES, D, RM, T, ARF, IOBT, LV, U, E/CTOT, X, FS, CL, A/TTOTTOBT, TSAT, TT, Delay, R, Opp, W, MSG, REGUL+, TTO Fix, ATT, O, TI, EFL, TOImpacted, CCAMS.

You may under some cincumstances get less or more columns, depending on your user profile and on the query context.

The Flights Results Tables section lists all possible results value - please refer to it for detailed information on the Point columns.
