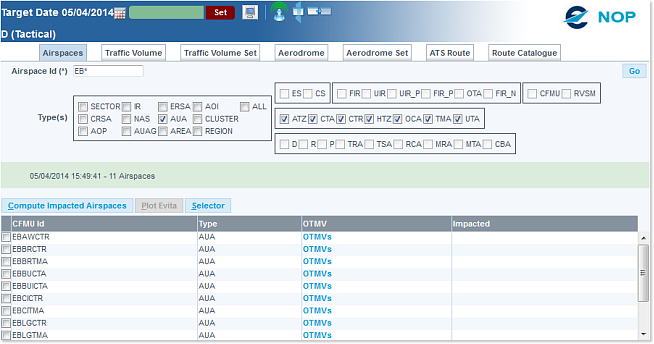

The Airspace page displays the list of Airspaces matching the selection criteria for the selected Target Date.
Query
- Airspace Id (*): Airspace identifier. By default, this field is empty. Note the possibility to use wildcards.
- Type(s): These optional settings let you check the desired parameters to be included in the query and narrow down the number of matches found:
- SECTOR
- IR
- ERSA
- AOI
- CRSA
- NAS
- AUA
- CLUSTER
- AOP
- AUAG
- AREA
- REGION
An additional ALL option is provided, allowing you to set with a single command all the types to respectively checked / unchecked state.
Some of these primary parameters fro the Type(s) collection give access to a set of secondary parameters:
- SECTOR: ES, CS
- CRSA /ERSA: D, R, P, TRA, TSA, RCA, MRA, MTA, CBA
- IR: FIR, UIR, UIR_P, FIR_P, OTA, FIR_N
- AUA: ATZ, CTA, CTR, HTZ, OCA, TMA, UTA
- AREA: CFMU, RVSM
Result
The matching results are presented in a table, with the following column headers:
- CFMU Id: Identification of the Airspace.
- Type: Type of Airspace (abbreviated code).
- OTMV: When the Airspace is of Type AUA or Cluster, the OTMV column implements a link to open the Airspace OTMV List Detached View for the corresponding ID and Target date.
- Impacted: Indicates if the airspace is impacted by the selected EVITA objects (i.e. results of the Compute Impacted Airspaces function).
Additional Functions
Three additional buttons do appear on top of the Query Result table:
Compute Impacted Airspaces
Click on the Compute Impacted Airspaces button to populate the Impacted column (if matches are found).

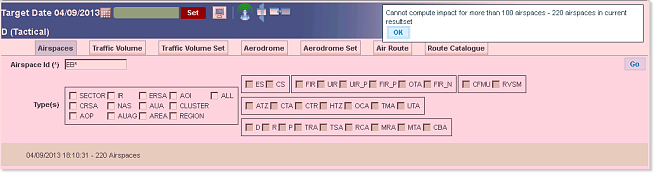

Note that the NOP cannot compute impact for more than 100 airspaces:
In such cases, use the Type(s) filters to reduce the number of returned Airspaces.
Plot Evita

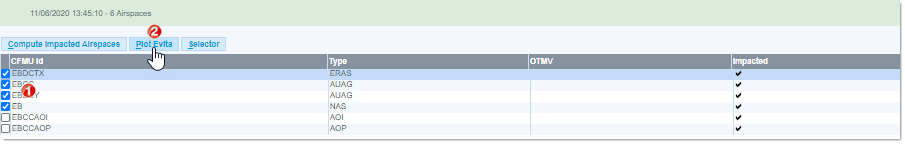

1 Select a number of Airspaces to enable the Plot Evita button (disabled by default) then 2 click on it to open a Map window:

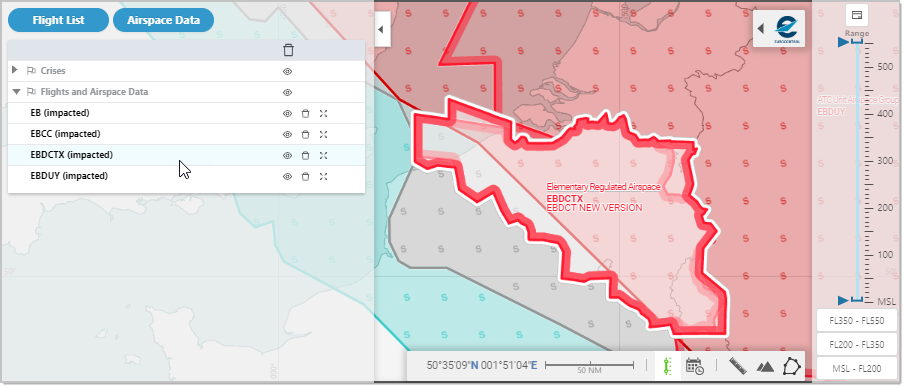

The corresponding Airspaces are drawn on the Map, along with the Evita data.
Selector

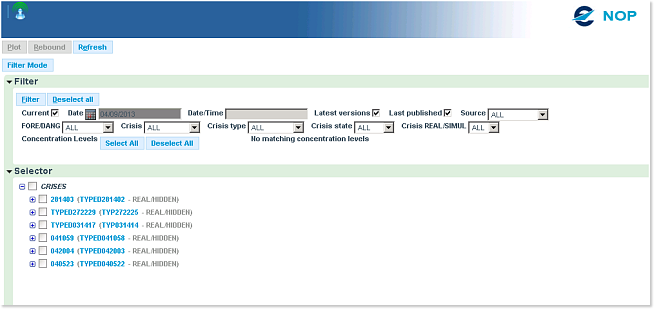

The Selector button opens another EVITA window - the EVITA Selector:
