EVITA Selector

The EVITA Selector Detached View is used by AOs and ANSPs to determine what elements are to be displayed on the EVITA Interactive Map.

Button Bar

  • Plot - launches the EVITA Interactive Map Detached View at the default zoom level and displays the areas as requested by means of the Selector.
  • Refresh - refreshes the data.

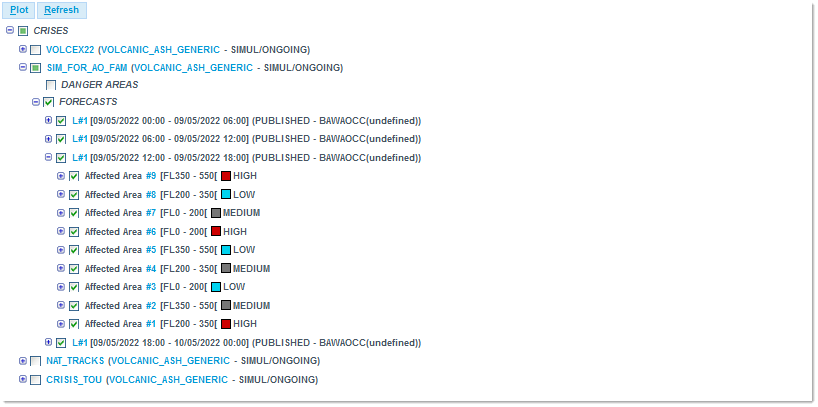

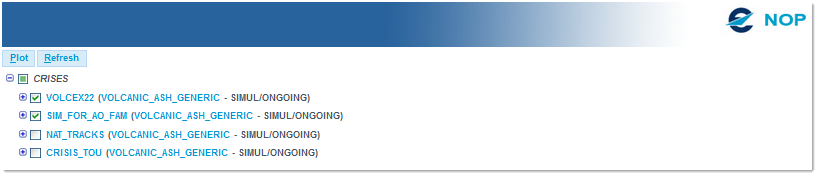

Use the Selector to pick up / exclude the elements you want to see plotted on the Map:

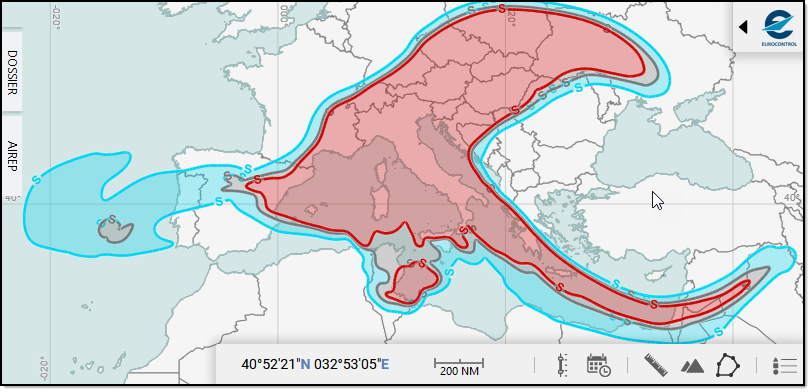

... And click on the Plot button to get the corresponding selection displayed on the EVITA Interactive Map:

Note: DANGER AREAS are the areas published by NMOC on behalf of the ANSPs, based on the information provided by the latter. FORECASTS are the affected areas provided by the VAAC units based on ash concentration level and published by NMOC.
