| Typical Scope: |   |

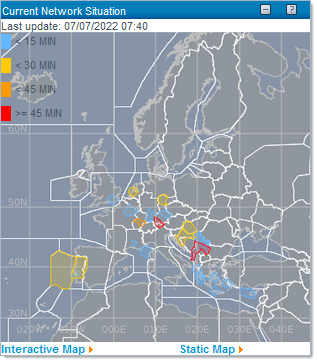

The Current Network Situation displays a map of Europe, where certain ACC areas are colour coded to indicate ATFCM delays for these areas.
Four types of delays are displayed, ranging from over 45 minutes to less than 15 minutes.
 |
< 15 min |
 |
< 30 min |
 |
< 45 min |
 |
>= 45 min |
Two links appear at the bottom of the Portlet, respectively opening the Interactive Map and the Static Map.
The Static Map provides a screenshot of the Network Situation, refreshed on a regular basis. It does however not allow you to launch queries, plot various entities and get realtime details on various elements such as regulation delays, flights, etc - which come with the Interactive Map application presented on the Protected NOP.
When in Tactical phase, the Current Network Situation displays a map of Europe, where certain elements are colour coded to indicate the foreseen ATFCM delays for these elements at the time of consultation.
In the Post-Operations phase, the Current Network Situation map for the selected target date displays the cumulated ATFM delay recorded per ACC over that day (00:00 am to 11:59 pm), displayed with the same color code as in the Tactical phase.
