The Traffic Volume List page displays the list of traffic volumes associated with an FMP (traffic volume set) or a given location (airspace, aerodrome, set of aerodromes or point) for the selected Target Date.

Query

When Invoked for an Airspace

• Is: Airspace identifier. By default, this field is empty.

When Invoked for an Aerodrome

• Is: Aerodrome identification. By default, this field is empty.
• Category: A drop-down list containing:


  a) Global - set by default
  b) Departure.
  c) Arrival.

When Invoked for an Aerodrome Set

• Is: Aerodrome Set identification. By default, this field is empty.
• Category: A drop-down list containing:


  a) Global - set by default
  b) Departure.
  c) Arrival.

When Invoked for a Point

• Is: Significant point identifier. By default, this field is empty.

When Invoked for a Traffic Volume Set

• Is: Traffic Volume Set identifier. By default, this field is empty.

When Invoked for a Traffic Volume

• Is: Traffic Volume identifier. A drop-down list containing all currently existing Traffic Volume sets.

Result

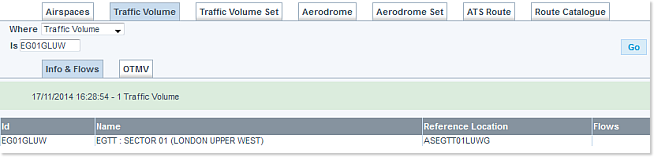

For each traffic volume matching the submitted query, the traffic volume list displays the following details:

Info and Flows

The Info and Flows table is always present:

• ID -  Traffic volume identifier.
• Name - Traffic Volume name.
• Reference Location - Reference location type and identifier related to the traffic volume.
• Flows - Related flows (1 per line) with the role if any.

The traffic volume list is sorted in ascending alphanumeric order of ID.  Click on the title of a column to sort its content (ascending or descending).

OTMV

An additional OTMV tab is only present when querying for a Traffic Volume identifier which is defined on an airspace reference location.

In such a case, the table presents the following data:

• WEF
• UNT
• Peak
• Sustained
• Occur
• Elapse
• Remark

Please refer to the Airspace / OTMV section for more information on this content.
