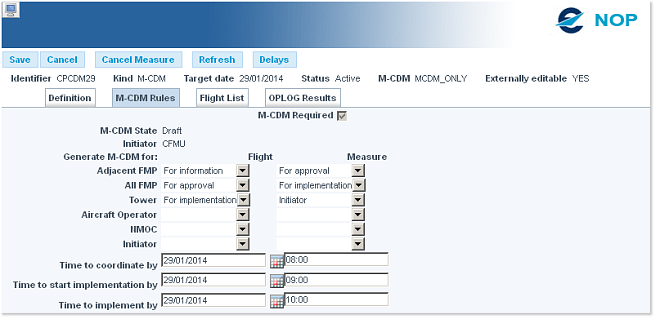

The M-CDM Rules is only relevant when M-CDM is identified as required. The detailed content except the M-CDM required indicator is hidden or disabled/empty when not relevant.

Content

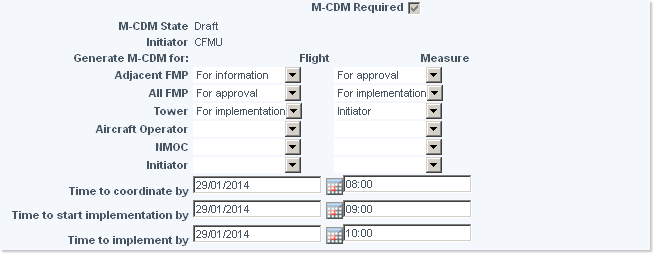

• M-CDM Required: Boolean indication (checkmark), set when the Collaborative Decision Making process  is required for this measure. This parameter can only be adjusted at measure creation.
• M-CDM State: Current state of the Measure Collaboration Decision Making process.
  Possible values are:
  a) DRAFT
  b) PROPOSED
  c) COORDINATED
  d)  FOR IMPLEMENTATION
  e)  IMPLEMENTED
  f)  FINISHED
  g)  ABANDONED
  h)  INTERRUPTED
  i)  NOT REQUIRED
• Initiator: ANU identification associated to the user who created the measure.
• Generate M-CDM for: The M-CDM rules definition table identifies which user category should play which role at which level in the M-CDM process.
  The content of this M-CDM rules definition table is used to identify automatically individual M-CDM actors and roles based on measure definition and affected flights.
• Time to Coordinate by: Next date and time deadline when M-CDM state is Draft or Proposed.
• Time to Start Implementation by: Next date and time deadline when M-CDM state is Coordinated.
• Time to Implement by: Next date and time deadline when M-CDM state is For Implementation.
