NOP Portal - Help
RSA Allocations

Query

  • Route ID: The Route Identification
  • RSA ID: The Area Identification
  • FIR ID: Indicates the FIR that the available area lies within (either wholly or partially) (4 characters)
  • UIR ID: Indicates the UIR that the available area lies within (either wholly or partially) (4 characters)
  • WEF: The Start time (hhmm)
  • TIL: The End time (hhmm)
  • AMA: Checkbox to display AMA (AMC-Manageable Airspace) RSAs
  • NAM: Checkbox to display NAM (Non-AMC-Manageable Airspace) RSAs.

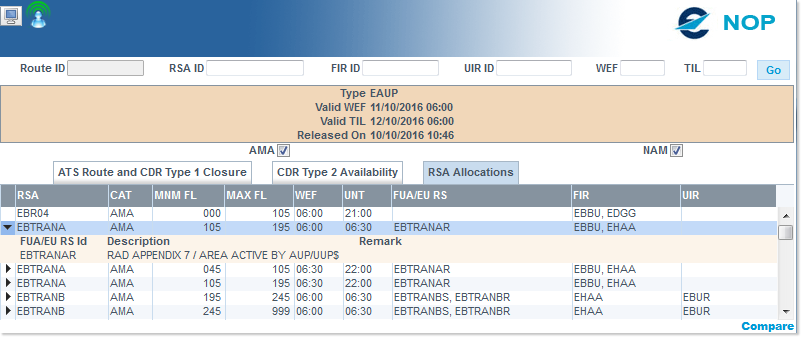

Results

  • : Expands or collapses the Description line with three additional fields: FUA/EU RS Id, Description and Remark.
  • RSA: The Area Identification
  • CAT: Indicates the RSA Category (AMA or NAM)
  • MNM FL: The minimum flight level of the available area (3 digits or “GND”)
  • MAX FL: The maximum flight level of the available area (3 digits or “UNL”)
  • WEF: The start time of the available area (hh:mm)
  • UNT: The end time (de-allocation) of the available area (hh:mm)
  • FUA/EU RS: FUA Restriction Identification
  • FIR: Indicates the FIR that the available area lies within (either wholly or partially) (4 characters)
  • UIR: Indicates the UIR that the available area lies within (either wholly or partially) (4 characters)
  • Compare: A link used to list the Predecessors, allowing you to pick one of them for comparison purposes - details here.
See Also
