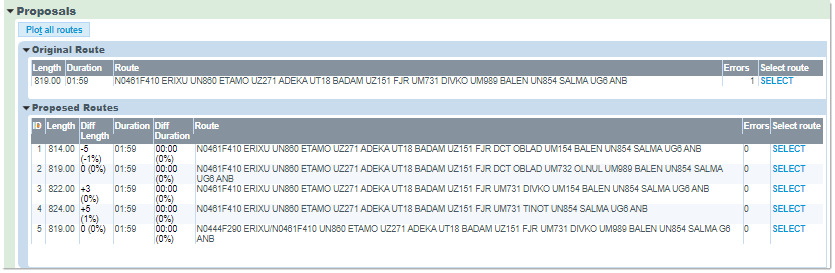

Following a click on the Propose button, the Proposals panel is displayed with the following:

If the query contains errors: a list of errors in the submitted query (not related to the no of errors in the original route)

If the query is valid and is accepted by the server:

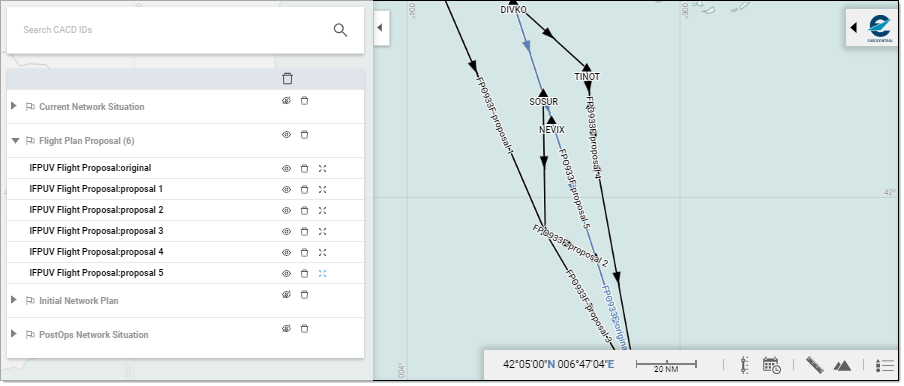

• A Plot All Routes button: opens the Interactive Map to graphically display the flight profile of the original route, as well as all the proposed routes:


• Original Route: indicates the original route:
  • Length (in Nautical Miles)
  • Duration (in hours and minutes)
  • Route: the actual route
  • Select Route: a SELECT link to automatically paste the corresponding route in the Route field
• Proposed Routes: displays in a table form, the following parameters:
  • Id (position in the list returned by the server)
  • Length (in Nautical Miles)
  • Diff Length: the difference in length compared with the original route expressed in Nm and percentage


    Note: The length difference is displayed in colour red if bigger than +0.5%, in green if smaller than -0.5% and in black if between and included -0.5% and +0.5%.

  • Duration (in hours and minutes)
  • Diff Duration: the difference in duration compared with the original route expressed in HH:MM and percentage
  • Route: the proposed route(s) - or indication of no route being found
  • Errors: the number of errors encountered
  • Select Route: a SELECT link to automatically paste the corresponding route in the Route field
