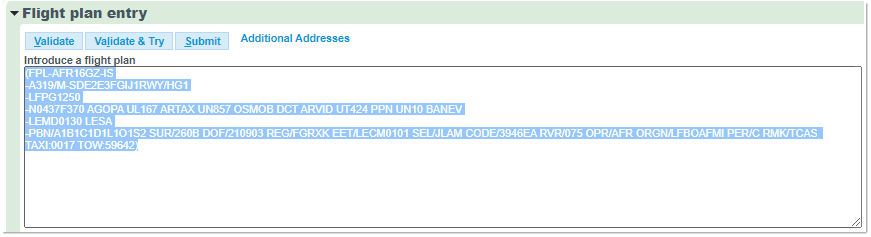

This is where you will enter (type or past from external source) the content of the Flight plan, in ADEXP or ICAO format.

Button Bar

//DEF

• Validate
• Validate & Try
• Submit
• Additional Addresses

• FPL Data: Free text area to enter a flight plan in ADEXP or ICAO format. By default, this field is empty.
• Via point(s): List of published points to be over flown. By default, the field is empty.
• Via airspace(s): List of airspaces that must be traversed (in 2D projection). By default, the field is empty.
• Avoiding point(s): List of published points to be avoided. By default, the field is empty.
• Avoiding airspace(s): List of airspaces that must be avoided (in 2D projection). By default, the field is empty.
• Frozen from ADEP to: The end point of a route segment to be frozen at the beginning of the route. All proposed routes contain the route segment from the departure aerodrome up to the indicated point.
  In the case of circular routes, the first point encountered is considered, resulting in the minimal frozen portion.

  Note: Freezing will NOT preserve any information present in a VFR, OAT or STAY portion of route.

• ... to ADES is frozen: The start point of a route segment to be frozen at the end of the route. All proposed routes contain the route segment from the indicated point up to the destination aerodrome.
  In the case of circular routes, the last point encountered is considered, resulting in the minimal frozen portion.

  Note: Freezing will NOT preserve any information present in an invisible portion (e.g. VFR segments).


• Propose only RAD compliant routes: When checked, IFPUV only returns routes that are RAD compliant. If not checked, it returns all possible routes. By default, this field is checked.
• Max number of proposals (1-10): Maximum number of proposed routes required from IFPUV, between 1 and 10. By default, this is field set to 5.

The Editor features the following functions:

Validate

The Validate button is used to validate the submitted data and get to see the results in the Validation Results section.

Propose Routes

The Propose Routes button is used to get a list of possible routes displayed in the Proposals section. This function is restricted by security profile so you may not have access to it.

Submit

The Submit button sends the flight plan to the IFPS, and updates the content of the  the Submit Results section.

Additional Addresses

The Additional Addresses link opens a dialog allowing you to specify the additional AFTN address(es) where the flight plan will be sent by means of the Submit button.
