NOP Portal - Help
Portlets from A to Z > Flights > Filing
Filing

The Filing tab allows the retrieval and edition of Flight Plans as they are knows to IFPS - the other tabs reflecting the situation based on ETFMS/TACT data.

It therefore allows the access to Flight Plans up to five days before departure time, and not only from the usual 20 hours timespan as provided by the other Flights tabs. It also is the sole NOP tool allowing you to visualise, edit and potentially cancel Flight Plans not yet transferred to TACT.

Note: This tab is only visible to the profiles with the Flight Plan Management role:  AO, ARO, and FMP.

Query

  • ARCID: Aircraft identification. By default, this field is empty.
  • ADEP: Aerodrome of departure (optional). By default, this field is empty.
  • ADES: ICAO code of the aerodrome of destination (optional).
  • From and Until: determine the timespan for the query. By default, these fields display the current date

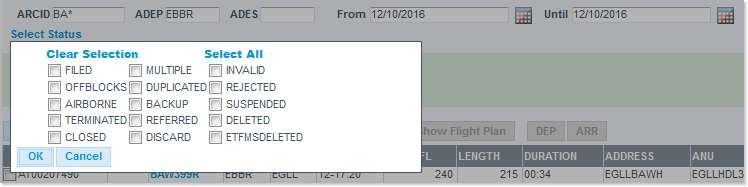

  • Select Status: Link to open a dialog offering to filter the results and only display flights matching the selected status:



    The Status list by which to filter the query is following:
    • FILED
    • OFFBLOCKS
    • AIRBORNE
    • TERMINATED
    • CLOSED
    • MULTIPLE
    • DUPLICATED
    • BACKUP
    • REFERRED
    • DISCARD
    • INVALID
    • REJECTED
    • SUSPENDED
    • DELETED
    • ETFMSDELETED
You may use wildcards in your query - providing that at least one of the entries (ARCID, ADEP or ADES) is fully specified.

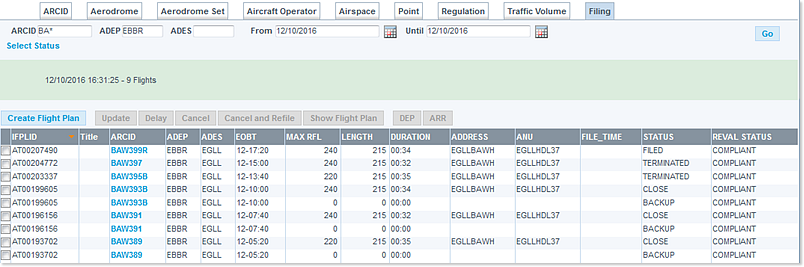

Result

Button Bar

Depending on the status of a flight, various options are proposed:

  • Update
  • Delay
  • Cancel
  • Cancel and Refile
  • Show Flight Plan

Please refer to the AO Specific Features section for detailed information on these commands.

You may also use the Create Flight Plan button and open the Editor of your choice (Free Text or Structured), without having to return to the Main View:

 As for the Results table, here are the featured columns:

  • IFPLID: Unique FPL_ID for the valid flight plan. Applicable to flights that are or have been valid.
  • Title: Title of the FPL message
  • ARCID
  • ADEP
  • ADES
  • EOBT
  • MAX RFL: Maximun RFL reached (RFL meaning Request Flight Level)
  • LENGTH: Flight length in NM (Nautical Miles)
  • DURATION: Flight duration
  • ADDRESS: Address of the message originator
  • ANU: ANU identifier of the message originator (ANU means Air Navigation Unit)
  • FILE_TIME: Filing time
  • STATUS: Status of the FPL as understood by IFPS
  • REVEAL STATUS: Revalidation status of the flight
