The Airspace Profile: Elapsed Flying Time and Airspace Profile: Actual Time tabs show the detailed information for the selected flight.

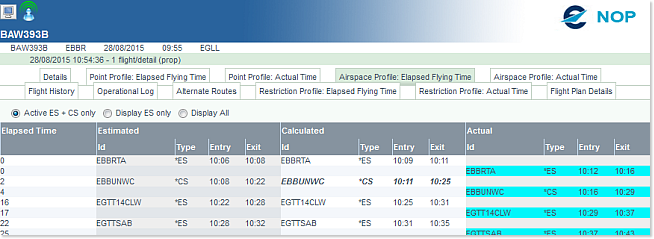

Elapsed Flying Time - the table is based on the elapsed flying time since take off to the time of entry of the flight into the airspace:

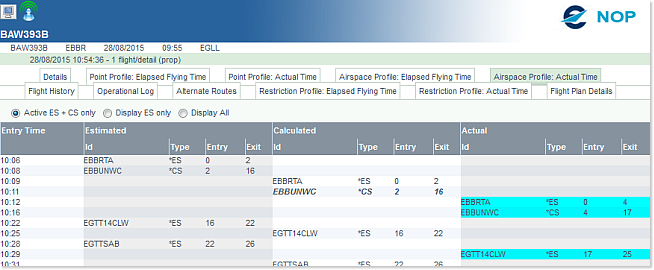

Actual Time - the table is based on the time of entry of the flight into the airspace:

A group of pre-defined Airspaces local filtering offers the following mutually exclusive options:

1.       Active ES/CS only - allows to limit display to the activated Elementary and Collapsed Sector Airspaces only - activated by default.

2.      Display ES only- allows to limit display to the Elementary Sector Airspaces only (activated or not)

3.      Display All - allows to display all line entries of the airspace profile (any Airspace Type)

Activated ES/CS airspaces at the moment of the flight are indicated by an asterix in front of the Airspace type.

Structure

Each table is divided in four main sections:

1. Elapsed Time or Time Over - time elapsed since departure or Time Over, depending on the selected tab
2. Estimated - list based on Estimated profile from the flight plan
3. Calculated - list based on Calculated profile when available. Calculated profile is calculated after the ATFCM measures are applied (regulations will modify the times, rerouting may also modify the route).
4. Actual - list based on Actual profile when available. Actual profile is calculated according to the effective departure time.

For each airspace type along the route, the Estimated list details the following:

• Id: Airspace Identification.
• Type: Airspace type.
• Entry: Either the Estimated Time of Entry (in hh:mm) or the Elapsed Time at Entry (in minutes) of the flight in the airspace.
• Exit: Either the Estimated Time of Exit (in hh:mm) or the Elapsed Time at Exit (in minutes) of the flight in the airspace.

For each airspace type along the route, the Calculated list details the following:

• Id: Airspace Identification
• Type: Airspace type
• Entry: Either the Calculated Time of Entry (in hh:mm) or the Elapsed Time at Entry (in minutes) of the flight in the airspace.
• Exit: Either the Calculated Time of Exit (in hh:mm) or the Elapsed Time at Exit (in minutes) of the flight in the airspace.

For each airspace type along the route, the Actual list details the following:

• Id: Airspace Identification.
• Type: Airspace type.
• Entry: Either the Actual Time of Entry (in hh:mm) or the Elapsed Time at Entry (in minutes) of the flight in the airspace.
• Exit: Either the Actual Time of Exit (in hh:mm) or the Elapsed Time at Exit (in minutes) of the flight in the airspace.
