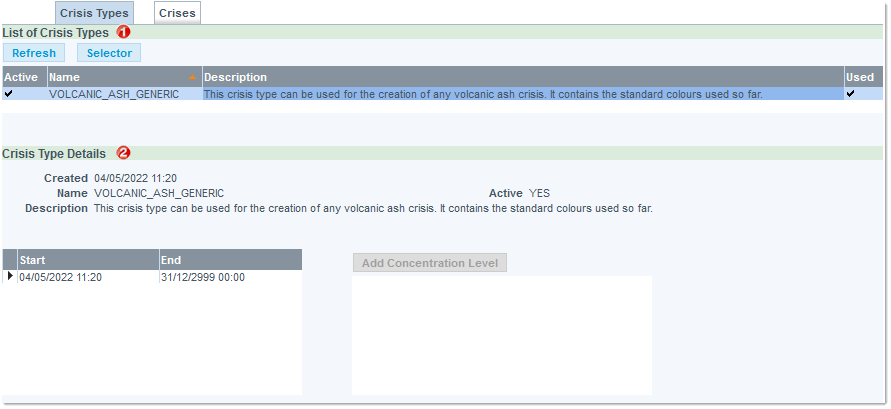

The Crisis Types tab is divided in two sections:

1. List of Crisis Types
2. Crisis Types Details (only visible when a Crisis Type has been selected in the List of Crisis Types)

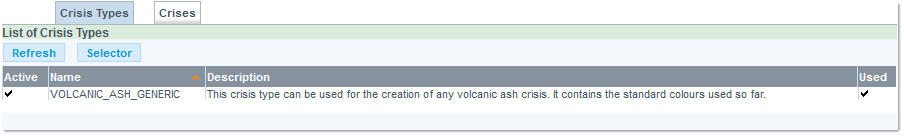

List of Crisis Types

The List of Crisis Types section lists the existing types of crisis, in the form of a table:

• Active: when checked, indicates that the crisis been set to the Active status and available for assignment to a crisis (see below the Activate & Deactivate functions).
• Name: the name given to the crisis.
• Description: descriptive text as set in the Description field.
• Used: when checked, indicates that the Crisis Type is used by one or more crises. Button Bar

The Crisis Types tab also allows the following actions from the Button Bar:

• Refresh: Used  to refresh the display after having performed a change in the Crisis Types list, and/or to get the latest updates.
• Selector: This last action button launches the EVITA Selector Detached View.


Crisis Type Details

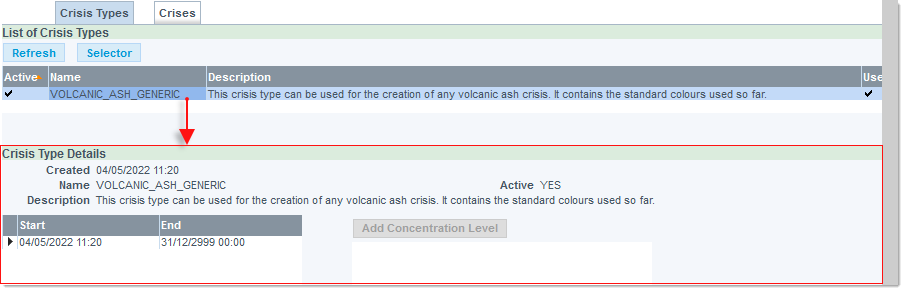

If not already available, click on a table row to open the corresponding Crisis Type Details pane:

This provides the following information:

• Created: date and time of creation
• Name and Description: name and description
• Active: Boolean value (YES or NO)

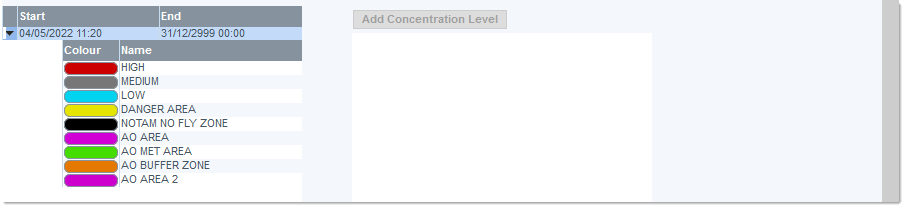

Concentration levels

A table displays, for each validity period, the available concentration levels along with associated color:

The first entry created will Start on the creation date and time and End on 31/12/2999 00:00 (equivalent to 'never' - meaning that it will always be valid).
