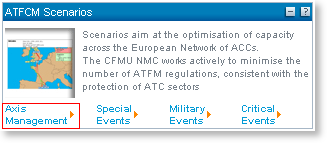

In this example, we have selected the Axis Management category, which opens the Scenarios List shown below:

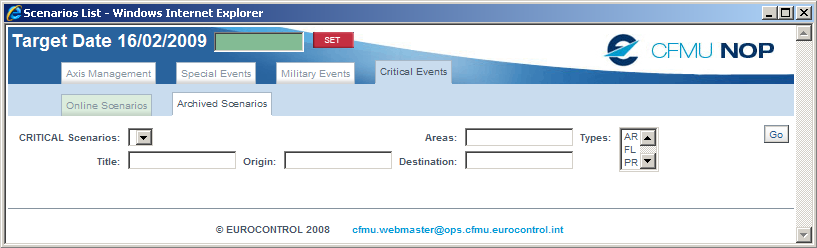

Various query functions are available to retrieve scenarios:

• Online or Archived: determines whether the query will apply to online scenarios or to archived ones.
• Axis Scenarios: filters the Axis along which to query.
• Title, Origin, Destination and Area: allow for further filtering when filled in.
• Types:  AR, FL, PR, RR - select one or more.
• Status: Published, Agreed, Active (you can select more than one to produce the combination you need)

The Target Date can also be changed in the header of the detached view, to any other date in the future or in the past.

 Finally click on the GO button (or hit the Enter key) to launch the query and get the Scenarios List Detached View.

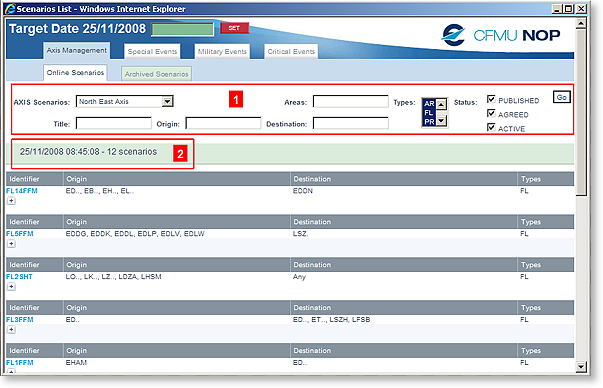

The result of a query from the Scenarios Detached View is a list of scenarios, displayed right below the 1. Query Area.

The date and time at which a given query has been made is indicated in the 2. Query Results area (in the green banner), along with the number of matching scenarios.

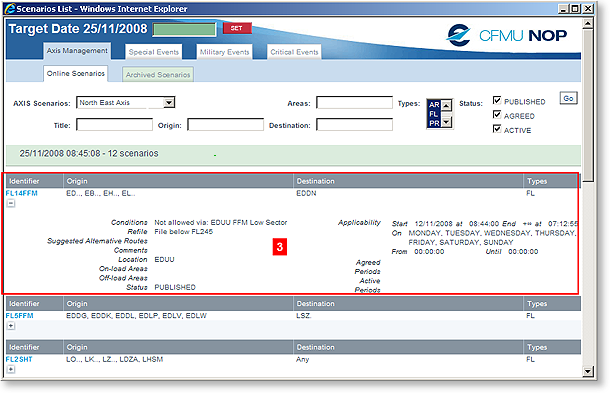

Clicking on the  button below a scenario label expands the item and  3. displays the main fields of the Scenario within the same List view.

Finally, clicking on one of the highlighted Scenarios identifier (FL14FFM, FL5FFM, ...) opens a Scenarios Detail window.
