The ATFCM Scenarios List features two tabs:

• Online Scenarios
• Archived Scenarios

The Online Scenarios tab is selected by default.

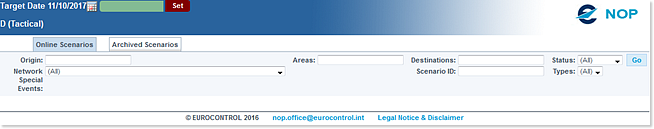

Online Scenarios

Query area

• Origin: Where the flow of the traffic to which the scenario applies, is coming from.
• Area: The specific airspace(s)/point(s) of congestion alleviated by the application of the scenario
• Destination: Where the flow of the traffic to which the scenario applies, is going to.


  Note: The Origin, Destination and Area text fields may contain the following elements:

  • nothing,
  • a complete text string,
  • a partial text string containing one or more  '.' (dot) characters to represent any character (i.e. EB.. means that all 4 characters origin string starting by EB will match the query),
  • a partial text string containing a '*' character after at least one alphanumeric character (i.e. E* will return all origin strings starting by E).
• Status: allows you to filter the query by status.
  Possible values can be:

  a) (All) (by default)
  b) Only Active
  c) Non-Draft
  d) Only Draft

• Network Special Events: Drop-down list of events valid for the selected Target Date.
• Scenario ID: the Scenario name. This parameter is made optional by the presence of the keyword (All) at the top of the list.
  The list is then filled in with the Name of all Network events corresponding to the current mode (online / archived) and the NOP Portal context (ATFCM phase and Target Date selection).

• Types:  Type(s) of scenarios - select one or more:
  Possible values can be:

  a) (All)
  b) AR - Alternative Route scenario.
  c) EU
  d) FL - Flight Level scenario
  e) NM
  f) PR - Preferred Routing scenario.
  g) RR - Re-Route scenario.

Note that the Target Date can also be changed in the header of the detached view, to any other date in the future or in the past.

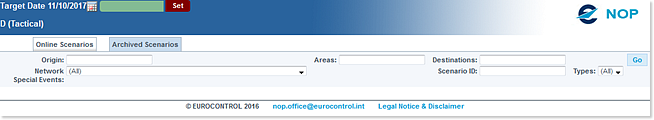

Archived Scenarios

Selecting the Archived Scenarios brings a new query area, very similar to the one in use for the Online Scenarios - except for the Status filter.

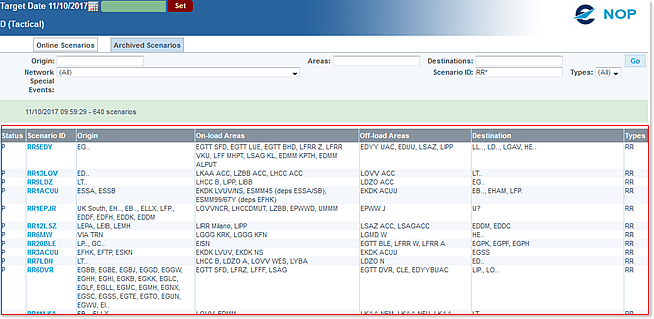

Result

Content of the Result area

• Status: the possible values are:
  a) D for Draft
  b) P for Published
  c) A for Active or Active and Published
• Scenario ID: the identifier of the scenario  (ex: LAPW283) - which further links to the corresponding Detailed Scenario window.
• Origin: list of Origins
• On-load Areas: list of On-load Areas
• Off-load Areas: list of Off-load Areas
• Destination: list of Destinations
• Types: type of scenario (PR, AR, FL, ...)

Finally, clicking on one of the Scenarios identifier (in blue in the Title column) opens a Scenarios Detail window.
