Add File To Document

Several methods to upload files to WIND are available.

Tagged Text

To add a file resource from the tagged text editor, first click on the Insert File Link button:

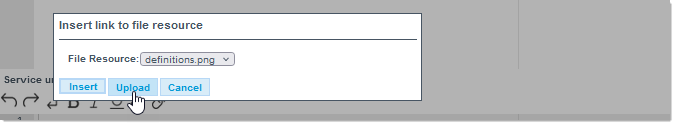

Then click on the Upload button:

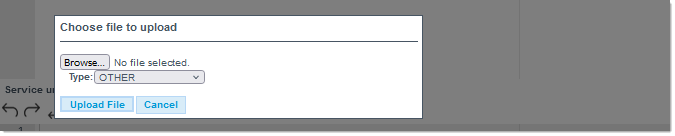

You will then be prompted to Browse for the file to upload, and specify its Type by means of a dialog:

  • The Browse option allows to you navigate in your file system (from your computer hard disk or any network drive to which you have access) and select the file;
  • The Type field allows you to select from one of the following file types. You will typically use the OTHER type, but here is the full list:
    1. SCENARIO_IMAGE
      Usage: Illustration in SCENARIOS (detached view)
      Size: Image will, if too big, be resized to 720x540 pixels
    2. FREESIZE_IMAGE
      Usage: Illustration in all documents where images can be embedded
      Size: Image size must be at least 90x90 pixels
    3. OTHER
      Usage: for all documents other than above described images

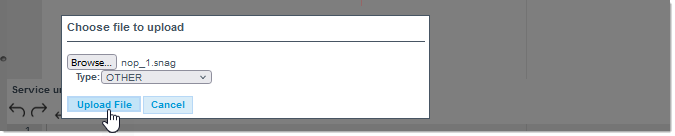

Finally click on the Upload File button:

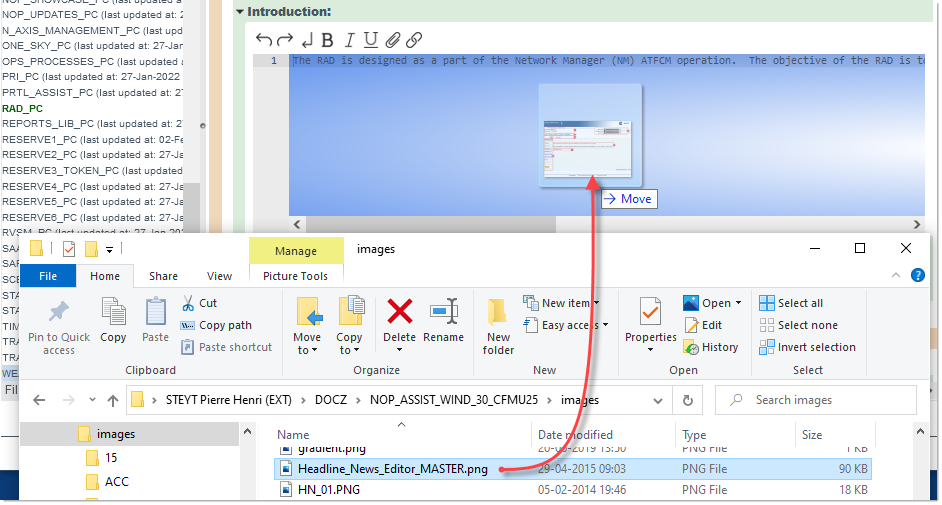

Another method to add eternal files to a text is by drag-and-drop, either from your file system ...

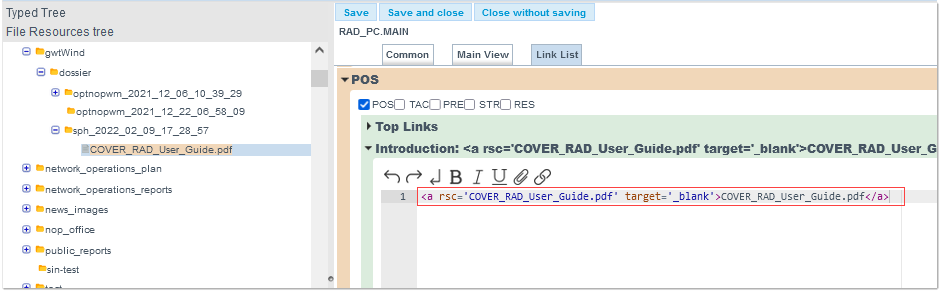

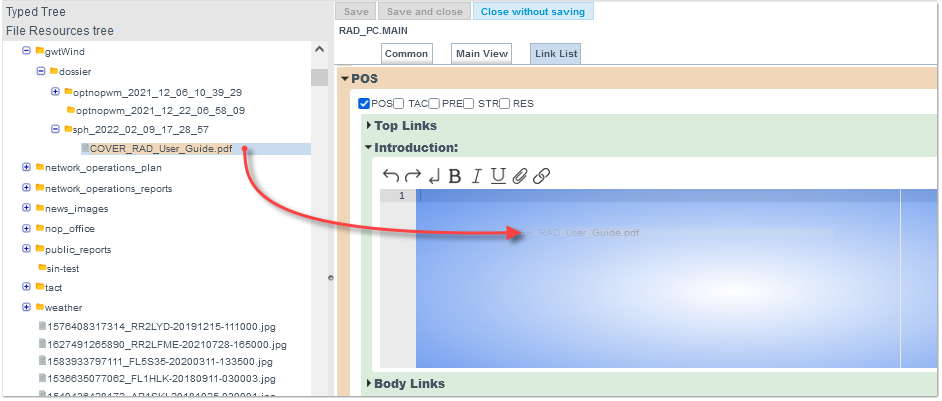

... or from File Resources tree:





Link

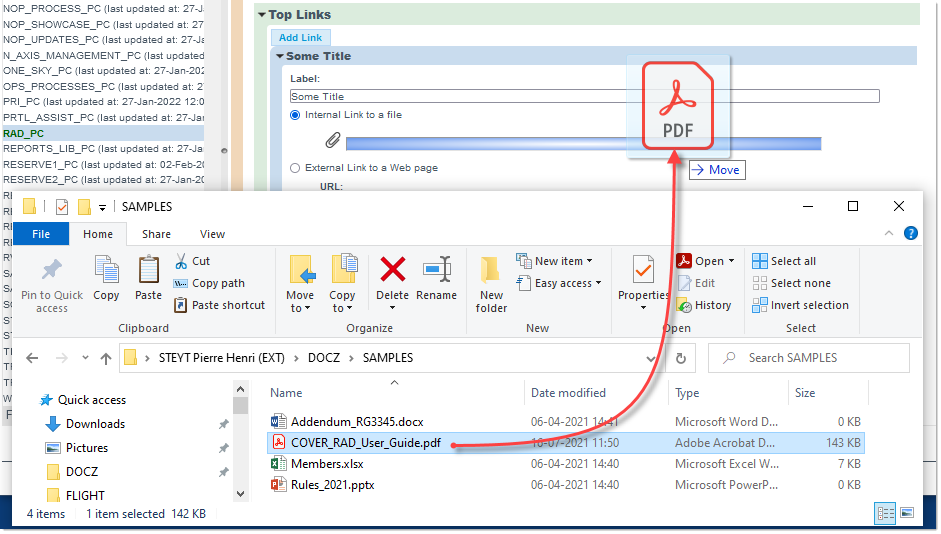

Here also, you can use drag-and-drop to upload content:

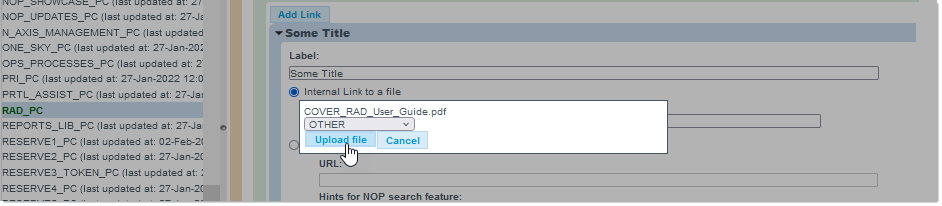

Keep the default file type set to OTHER and click on the Upload file button:



File Resources

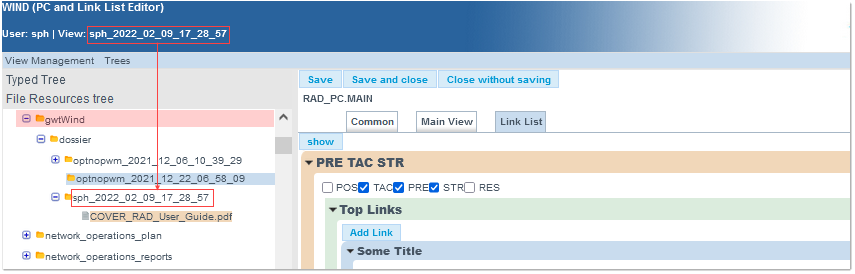

Your uploads are stored in the File Resources tree section, in a dossier named after the user View during which the operation was performed, that individual dossier itself being nested in gwtWind > dossier - as in this example:
