This is what the Map tab looks like when first opened:

This is where you indicate the reference locations to be drawn on the Daily Plan map.

Adding Locations

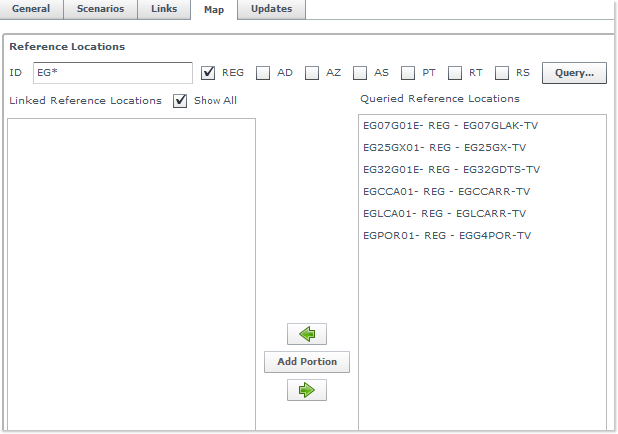

First search for all locations matching your query settings and then click on the Query... button to populate the right-hand Queried Reference Locations column:

The query settings will make use of the following parameters:

• ID: the ID of the reference location - note that you can use the * wildcard (at the beginning, somewhere in the middle, or at the end of the search string;
• REG, AD, AZ, AS, PT, RT, RS: checkboxes to enlarge the search scope to the selected arguments (REG being selected by default).

The next step will be to select (multiple selection is possible while holding the ctrl key down) the desired location(s) and click on the left arrow to move them to the left-hand Linked Reference Locations column - as depicted below:

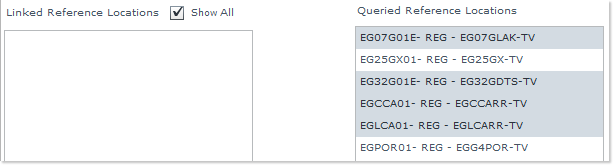

1. selection


2. click on the Move Left arrow

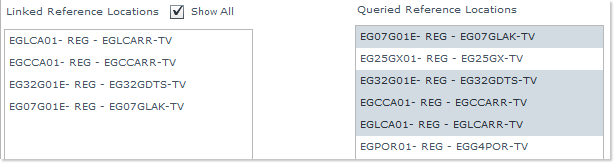

3. ... and see the result



Removing Locations

Simply select the location(s) to remove from the Linked Reference Locations column and click on the right arrow button.

Add Portion

The Add Portion button serves to add portion(s) of route(s) to the map elements

The example below shows the steps involved in adding to the Linked Reference Locations list the PIMUR <> ZORBA portion from route UM30:

1. Launch a Query... for the UM* search string with the RT filter checked on,
2. Select UM30-RT from the list of Queried Reference Locations,
3. Click on the Add Portion button to open a dialog box:

4. Locate and select ZORBA from the second drop-down list:

5. Click on the OK button

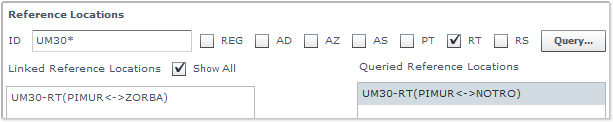

The selected route portion has been added to the Linked Reference Locations list:
