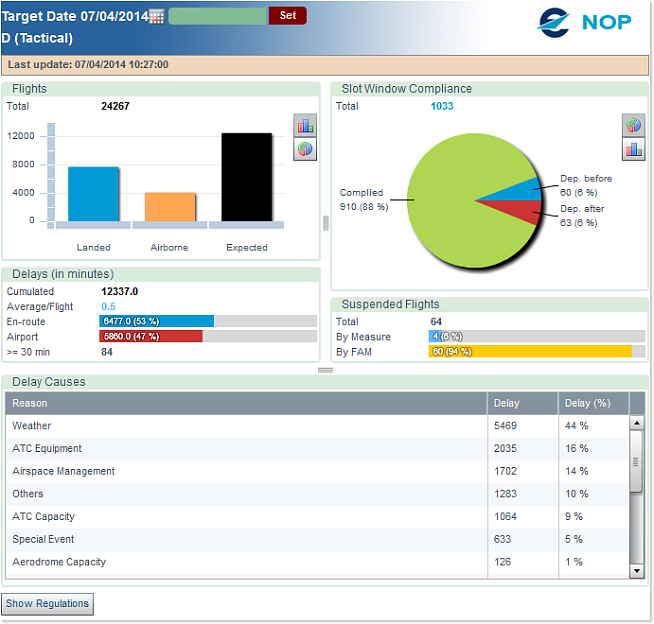

The ATFCM Situation Data Detached View comprises the 5 same sections as the Portlet, only to provide more details on their respective scope:

1. Flights are rendered in a graphical way, allowing you to switch between  pie chart and  bar graph modes.
2. The same applies for Slot Window Compliance.
3. The Delays in minutes and the Suspended Flights, similar to the one provided in the Portlet.
4. And finally the Delay Causes.
   The Delay Causes table contains all the regulations for the Target Day.
   You can click anywhere in the column headers to sort the data as you need (ascending or descending).

Show Regulations

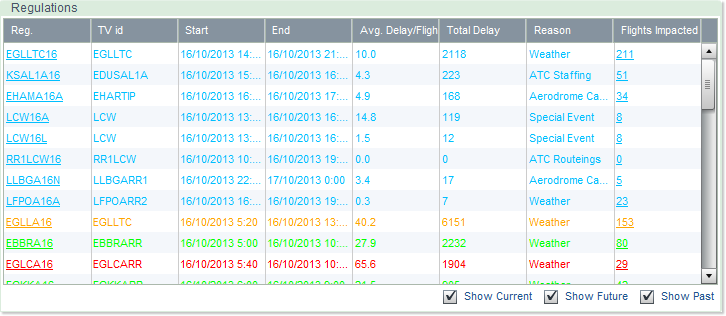

The Show regulations button reveals a secondary table listing all associated regulations:

Click on one of the regulation Id (in the Reg. column) to open the corresponding Regulation Details Detached View - please check the Regulation Details section for more information on this topic.
