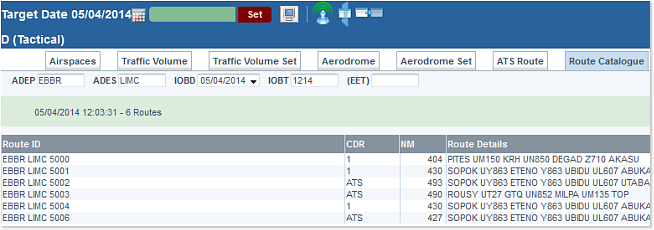

The Route Catalogue page lists all routes that match the provided city pair from the route catalogue for the selected Target Date.

Query

• ADEP: ICAO Identification of the departure aerodrome. By default, this field is empty.
• ADES: ICAO Identification of the destination aerodrome. By default, this field is empty.
• IOBD: Initial Off-Block Date. This field supports a drop-down list containing the dates of Today and Tomorrow. By default, this field is set to Today.
• IOBT: Initial Off-Block Time. By default, this is set to 0000 (in hhmm format - must be equal to or between 0000 and 2359)
• (EET): Estimated Elapse Time (optional). By default, this field is empty. If not, the input must be an integer value equal to or between 0 and 9999 minutes.


Results

• Route ID: Identifier of the route (ADEP / ADES / sequence number)
• CDR: Conditional route category. Possible values are:
  1. ATS: when the ATS route is still planable.
  2. 1: for permanently plannable conditional route. Closure is published in NOTAM and AUP/UUP.
  3. 2: for non permanently plannable conditional route. Opening can be published in AUP/UUP.
  4. N: for non plannable conditional route - used only at short notice on ATC instructions.
  5. Not Available: for non plannable conditional route.
• NM: Distance in nautical miles
• Route Details: Detailed description of the route/path, not including ADEP and ADES.

The route list can be sorted by any one of the following fields: Route ID, CDR, NM, Route Details.
