Managing Impact

Creating entries

Once you have selected the type of KPA (CAPACITY or FLIGHT_EFFICIENCY), specified the period of application, and clicked on the OK button from the Create Impact pop-up, the corresponding Impact pop-up.

CAPACITY

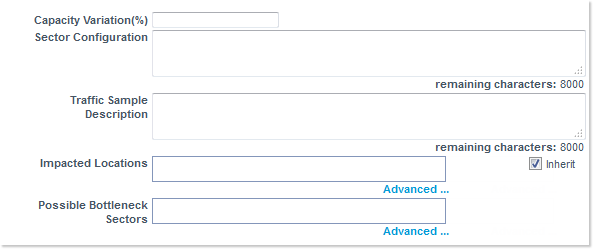

The middle part of the pop-up is dedicated to parameters specific to the CAPACITY KPA:

It contains the following:

Capacity Variation(%): the amount of capacity variation
Sector Configuration and Traffic Sample Description: free text areas
Impacted Locations: designate the different locations impacted by the event (by default, this field gets the values specified during the event creation process)
Possible Bottleneck Sectors: designate the relevant sectors

FLIGHT_EFFICIENCY

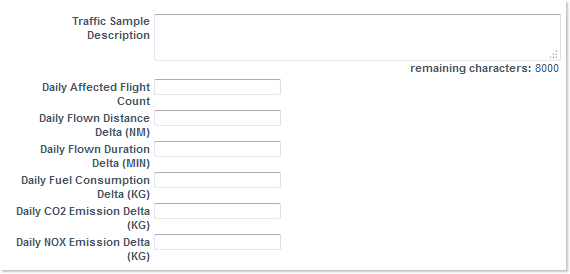

The middle part of the pop-up is dedicated to parameters specific to the FLIGHT_EFFICIENCY KPA:

It contains the following:

Traffic sample description: free text area
Daily Affected Flight Count, Daily Flown Distance Delta(NM), Daily Flown Duration Delta(MIN), Daily Fuel Consumption Delta(KG), Daily CO2 Emission Delta(KG), Daily NOX Emission Delta(KG): to enter the relevant values used for computing the KPA

Common Parameters

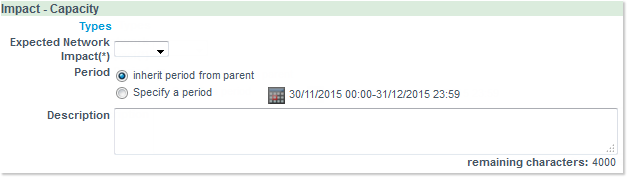

The upper part of either type contains these common parameters:

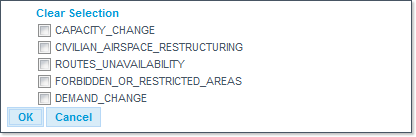

Types: opens a dialogue where you can specify one or more type(s) from the proposed list: CAPACITY_CHANGE, CIVILIAN_AIRSPACE_RESTRUCTURING, ROUTES_UNAVAILABILITY, FORBIDDEN_OR_RESTRICTED AREAS, DEMAND_CHANGE
Expected Network Impact(*): select the appropriate value from the proposed list: HIGH, MEDIUM, LOW (mandatory field)
Period: inherit period from parent or specify a period
Description: an optional descriptive text

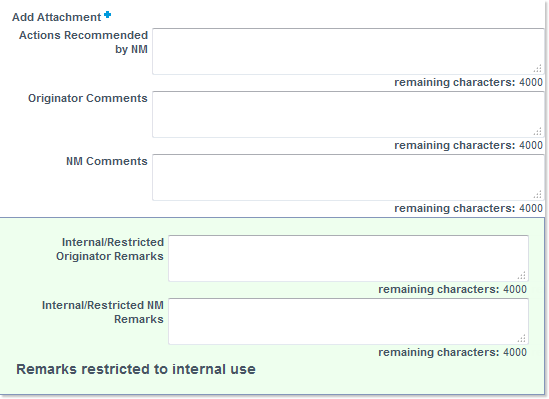

Lastly, the bottom part of either type contains these common parameters:

Add Attachment: link to open the component allowing you to attach files (the files need to be uploaded first to the Resources tab).
Actions recommended NM, Originator Comments, NM Comments, Internal/Restricted Originator Remarks, Internal/Restricted NM Remarks: placeholders for descriptive texts

Note: here as well, the 'Remarks' fields will always be restricted and only visible to NM staff (and assimilated ). In a similar way, the 'Comments' fields are visible to all. In both cases, you will need the role 'Reader' associated to your profile.

Viewing / editing entries

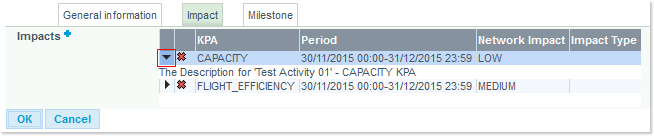

Click on the expand arrow to view the text as set in the Description field:

You can also double-click on a row from the table to re-open the Impact editor and view / edit the corresponding entry.

Deleting entries

Simply click on the red cross associated to an entry to delete it:
