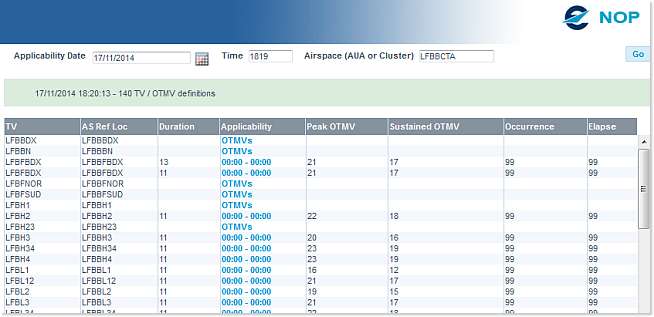

The Airspace OTMV List Detached View provides an overview of current and future Permanent and Temporary OTMV definitions for the selected area of responsibility of an FMP Manager  (i.e. a non clustered AUA or a Cluster), displaying a list of traffic volumes defined on an airspace reference location for an ATC Unit Airspace (AUA) or a AUA cluster and a selected date.

Query

• Applicability Date: Date to be used for selecting the OTMV definition for the list of traffic volumes. By default, this field is set to the Target date selected in the invoking window.
• Time: Time of the day for selecting the OTMV definition to be displayed for each traffic volume. By default, this is set to the current UTC time.
• Airspace (AUA or Cluster): Identification of the ATC Unit Airspace (AUA) or AUA cluster.

Result

• TV: The Traffic Volume identifier.
• AS Ref Loc: The identifier of the Airspace Reference Location on which the Traffic Volume is defined.
• Duration: The occupancy count Duration value associated with the attached OTMV definition, when a definition is present.
• Applicability: The applicability time period (hh:mm – hh:mm) of the attached OTMV definition for the Applicability Date selected in the query, when a definition is present. Otherwise the OTMV keyword is displayed to always allow for the implementation of the link described in 5.1.4.2.
• Peak OTMV: The Peak OTMV threshold parameter, when defined.
• Sustained OTMV: The Sustained OTMV threshold parameter, when defined.
• Occur: The Sustained Occurrence parameter, when defined.
• Elapse: The Sustained Elapse parameter, when defined.
